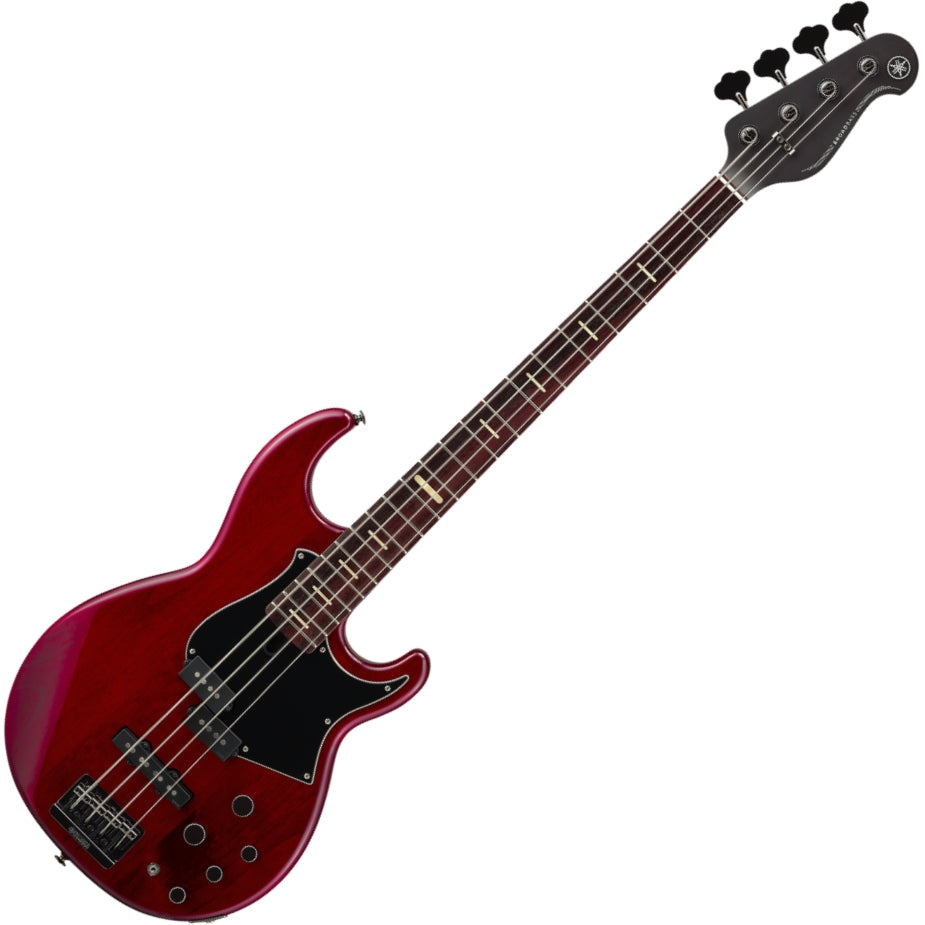

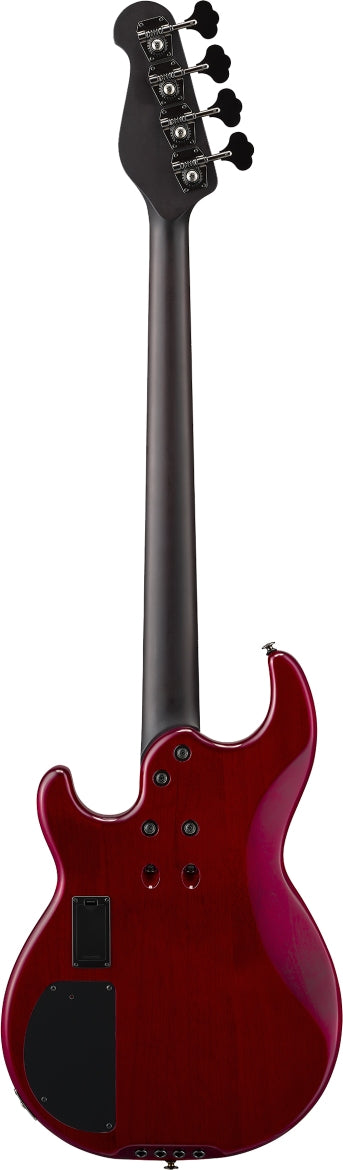

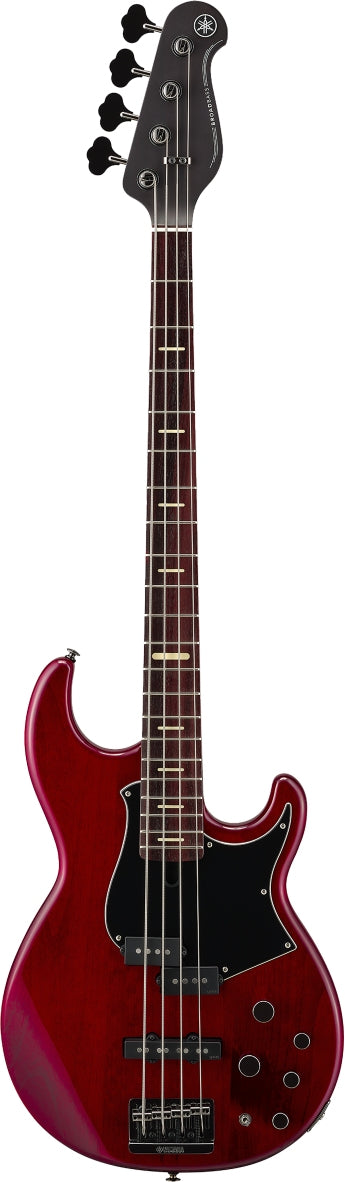

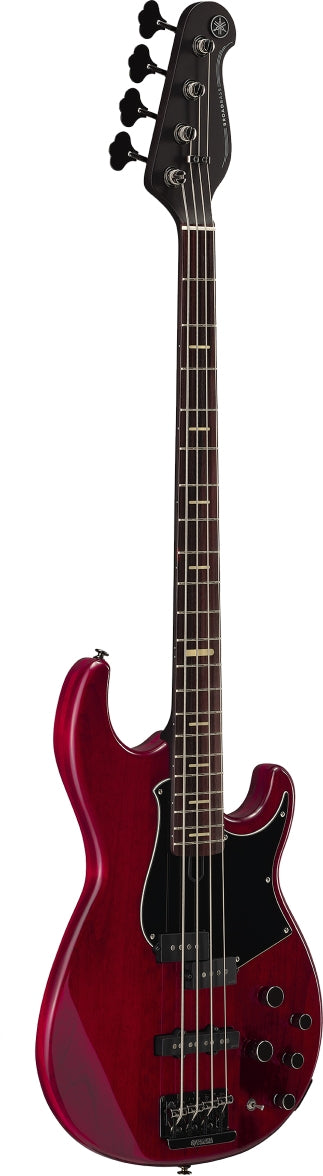

The Yamaha BB734A FRD electric bass is outfitted with pickups that allow you to shape your sound.
The BB for the working pro, the BB700 series features a versatile active/passive pickup configuration with a three-band EQ, 6-bolt miter neck joint, alder/maple/alder construction, and a diagonally strung convertible bridge.
Features:
- Alder/maple/alder body construction
- 6-Bolt miter neck joint
- 5-piece neck
- YGD custom V7 pickups (Alnico V)
- 3-Band active EQ
- Battery alert LED
- Vintage Plus Bridge with convertible bridge and saddles
- Lightweight open-gear tuners
BB700 SERIES
Music isn't just something you "do" anymore- it's your life. Every time you get on stage or hit the record button you've got to feel content in the knowledge that you're playing an instrument with the versatility, durability, and superb sound that will guarantee your performances are consistently on point. Combining the crisp, penetrating tone, and serious flexibility of active pickups with the punch and sustain of a 6-bolt miter neck joint, the 700 models can be relied on to deliver an extraordinarily versatile sound that you can adapt to any genre or environment.
ALDER/MAPLE/ALDER BODY CONSTRUCTION
The latest BB700 models feature alder/maple/alder laminated body construction. The hard maple center increases body stiffness and accentuates midrange to cut though a band mix, and allows a more uniform transmission of vibration between the body and neck, resulting in exceptional resonance and sustain
6-BOLT MITER NECK JOINT
Miter bolting holds the neck closer and tighter to the body, fusing these two separate components into one.
Compared to a conventional bolt-on joint, miter bolting offers more efficient transfer of string vibration throughout the body, for outstanding sustain and resonance that brings every note to life.
YGD CUSTOM V7 PICKUPS
Alnico magnets produce a thick yet penetrating tone that works in combination with the unique body construction to deliver an organic, well-defined sound.
ACTIVE CIRCUIT
The new BB700 models feature a specially tuned active/passive circuit for fine tonal control and extreme flexibility.
This updated circuit has been retuned for the BB for a crisper tone and improved mids via a level-matched output whether in passive or active mode and tone-switching circuitry that seamlessly moves from treble control to master passive tone.
High-quality gold plated parts are used for key signal chain contacts, providing increased conductivity and reliability and a battery alert LED installed on the back panel gives instant indication of low power to eliminate sudden power loss during performance.
CONTROL
The 700 models feature active pickups with a 3 band EQ, a pickup balancer, and an active/passive switch, for enhanced versatility and flexibility when shaping your sound.
CONVERTIBLE BRIDGE AND SADDLE FOR PRECISE TONE SHAPING: VINTAGE PLUS BRIDGE
BB700 models feature our Vintage Plus bridge, which allows stringing through the bridge or body. Strings pass through the body at a 45-degree angle, which places less stress on the strings than traditional vertical through-body stringing, while efficiently transferring string vibration to the body.
Long-scale strings are recommended when stringing through the bridge and super long-scale strings are recommended when stringing through the body.
Convertible brass saddles offer two angles for precise shaping of tone and feel. The rounder side produces a slightly softer sound, while the more angled side produces a slightly tighter tone.
The brass saddles deliver deeper low-end and the steel bridge plate adds brightness. All screws and springs are stainless steel to guard against corrosion.
5-PIECE NECK
The latest BB700 models features a 5-piece maple and mahogany laminated neck, in a bolt-on design that delivers a sharp attack, and quick response. This durable construction resists warping and twisting and combines the tight, penetrating character of maple with the warmth of mahogany.
LIGHTWEIGHT TUNERS
Lighter-weight tuners offer better balance and complement the overall feel, providing a perfect match for the smaller, lighter body of the latest BB.
Specifications:
- Construction: Bolt-on (6-bolt miter neck joint )
- Scale Length: 34" (863.6 mm)
- Body Materials: Alder / Maple / Alder construction
- Neck Materials: Maple/ Mahogany 5pcs
- Neck Finish: Satin Polyurethane
- Fingerboard Materials: Rosewood
- Fingerboard Radius: 10" (250 mm)
- Fret wire: Medium
- Number of frets: 21
- Nut materials: Graphtech
- Width @ 0 Fret / 12th Fret: 40.0 / 56.3 mm
- Thickness @ 1st Fret / 12th Fret: 21.0 / 23.0 mm
- Neck Pickup: VSP7n : Split Single Coil / Alnico V
- Bridge Pickup: VSC7b : Single Coil / Alnico V
- Controls: Master Volume, Pickup Balancer, 3-BAND EQ(Bass, Middle, Treble), Active/Passive Switch
- Bridge: Vintage Plus : Convertible stringing, Brass Saddle, Steel Plate
- String spacing: 19 mm
- Tuning Machines: Lightweight Open Gear
- Pickguard: 3-Ply Black
- String gauge: D'Addario EXL-170 / 0.045-0.100
